2 products

Complete Build Kit vs Quick Connect Kit

Complete Build Kit + ChillerQuick Connect Kit + Chiller
PriceFrom $999.95From $1,099.95
PlumbingGlued 3/4 inch PVC3/4 inch quick connect fittings, no glue or primer
Install time1 to 3 hours, plus PVC cure timeAbout 1 hour, including drilling and leak testing
Take it apart laterNo, glued joints are permanentYes, fittings release by hand
Pump, ozone and filtrationSame in both: Danner Aqua-Mag 1200 pump, Ambohr SPA-124 ozone, 10 inch filter housing with two 50 micron cartridges
ChillerActive Aqua 1/4, 1/2 or 1 HP with the matching connections
Best forA permanent setup at the lowest priceMoving, reconfiguring or storing the plunge for winter
Shop the Complete kitShop the Quick Connect kit

Which Active Aqua Chiller Size Do You Need?

ChillerCoolingRated tub sizeBest for
1/4 HP3,010 BTU/hr40 to 92 galBarrels and small tubs, rotomolded coolers like a Grizzly 450, indoors or in mild climates
1/2 HP4,020 BTU/hr90 to 130 gal100 gallon stock tanks, insulated tubs under 130 gallons and not in a hot climate over 85°F. If in a warmer climate or your tub is not insulated we recommend the 1HP chiller
1 HP10,050 BTU/hr80 to 250 galChillers in a space over 85°F, several daily users, or tubs over 130 gallons.

Outdoors, an insulated cover does more for run time than a bigger chiller.

Cold Plunge Builder

Build your cold plunge setup in 60 seconds

Answer a few quick questions about your tub and climate. We will match the chiller, the plumbing kit and the add-ons, then put it all in your cart.

Loading the chiller finder

What Else You Need

The bundle covers the plumbing, pump, ozone, filtration and chiller. Here is what you bring:

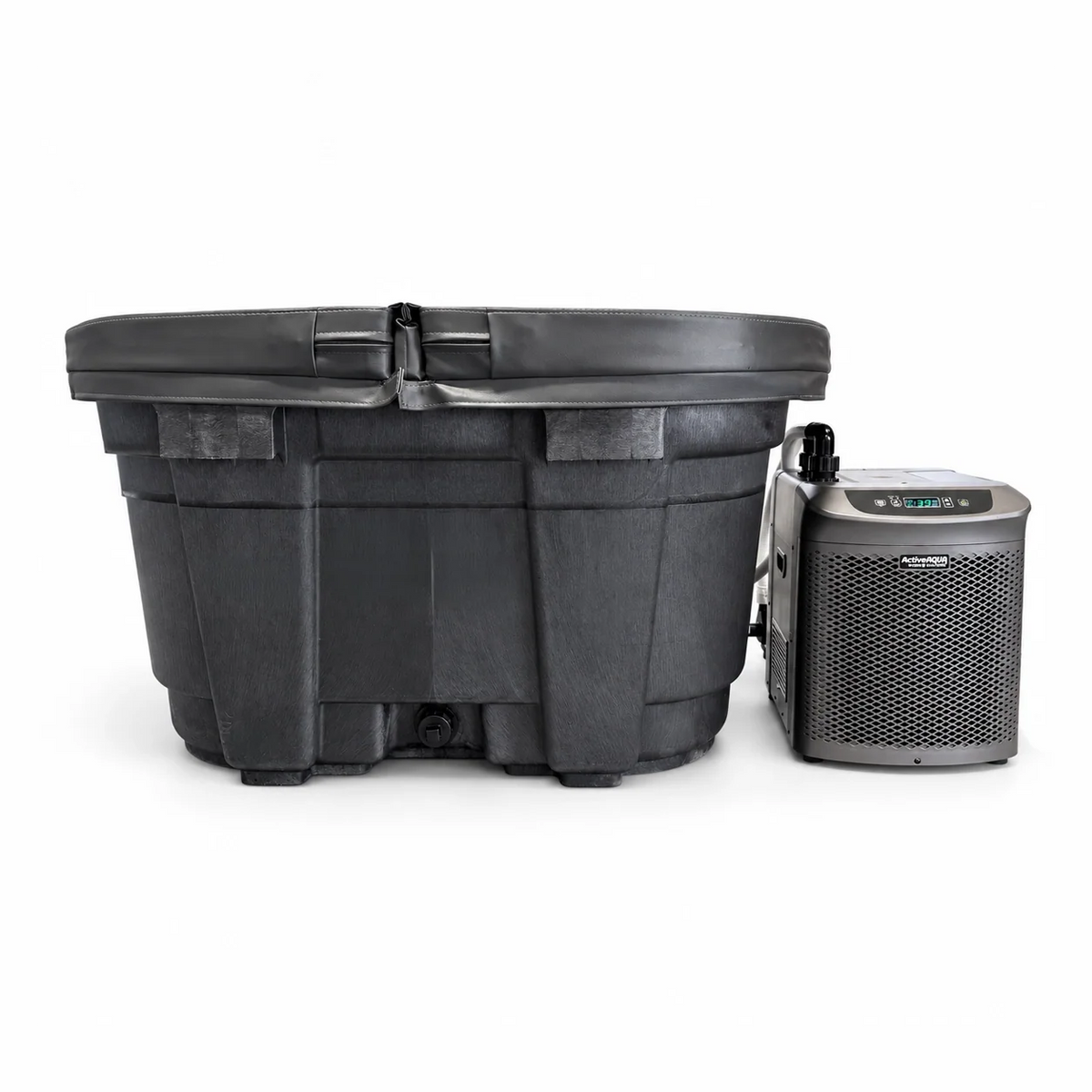

  • A tub. A Rubbermaid 100 or 150 gallon stock tank from Tractor Supply or a farm store, or any tub with a flat wall up to 1 1/2 inches thick for the bulkheads.
  • An insulated cover. Optional, but outdoors it does more for run time than a bigger chiller. Shop insulated covers.
  • A GFCI protected 120V outlet within reach of the chiller. No extension cords.
  • A covered spot for the chiller. Out of open rain and direct sun, with 12 inches of clearance on the sides and 18 inches behind it.
  • A drill and hole saw for the bulkhead holes. Your build guide lists the exact sizes and the rest of the tools for your kit.

DIY Cold Plunge Kit with Chiller FAQs

Do I need my own stock tank?

Yes, the tub is not included. Most builders use a Rubbermaid 100 or 150 gallon stock tank from Tractor Supply or a farm store. Both kits also fit any tub with a flat wall up to 1 1/2 inches thick for the bulkheads. We have seen a number of customers install on the Grizzly 450 as well.

Complete Build Kit or Quick Connect Kit?

Same pump, ozone, filtration and chiller. The Complete Build Kit uses glued PVC, takes 1 to 3 hours plus cure time, and costs $100 less. The Quick Connect Kit needs no glue, installs in about an hour, and comes apart later if you move or store the plunge.

Which Active Aqua chiller size do I need?

The 1/4 HP is rated for 40 to 92 gallons, for barrels, smaller tubs and rotomolded coolers like a Grizzly 450. The 1/2 HP covers a 100 gallon stock tank, and a 150 gallon tank only if it is insulated and the chiller stays out of the heat. Choose the 1 HP for an uninsulated 150 gallon tank, an uninsulated 100 gallon tank in a hot climate, a chiller in a space over 85°F, several daily users, or any tub over 130 gallons. Still unsure? Take the Chiller Finder.

Can the chiller sit outside?

Under cover, yes: a garage, basement or covered patio. Keep it out of open rain and direct sun, upright, with 12 inches of clearance on the sides and 18 inches behind it.

What outlet do I need?

A GFCI protected 120V outlet. The 1/4 HP (4.7A) and 1/2 HP (5.8A) share a standard 15 amp circuit with the pump. The 1 HP draws 10.2A and should have its own circuit. Skip extension cords, and call a licensed electrician if you are unsure.

What warranty comes with the bundle?

The Active Aqua chiller has a one-year manufacturer warranty, the Danner pump has a five-year limited warranty, and every Plunge Crafters part in the box has our one-year warranty.

How does it ship?

UPS Ground from Texas in two boxes, one for the kit and one for the chiller.
