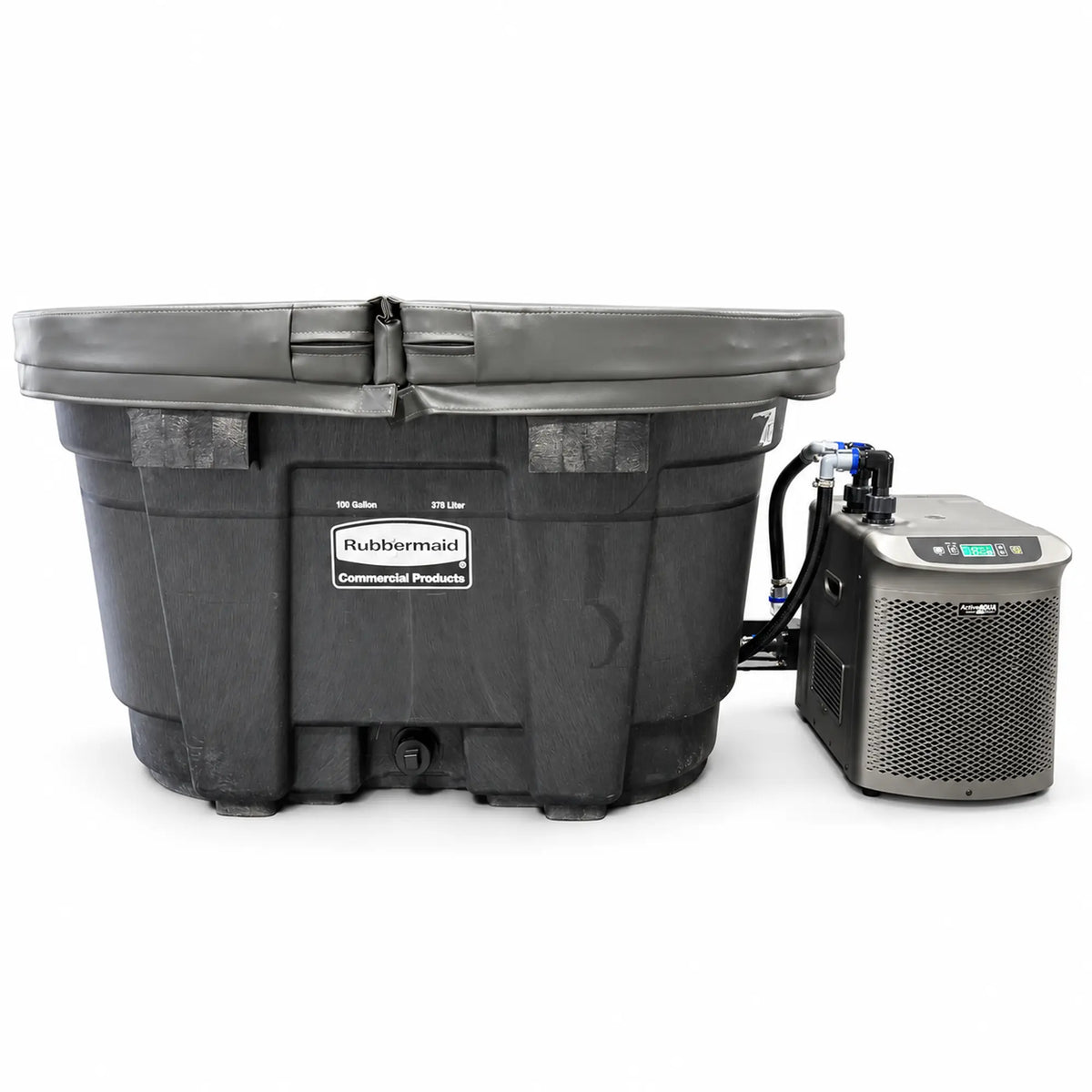

DIY Cold Plunge Quick Connect Kit with Active Aqua Chiller

DIY Cold Plunge Quick Connect Kit with Active Aqua Chiller

Regular price $1,099.95 USD
Sale price $1,099.95 USD Regular price $1,299.95 USD

No glue, no primer, no cure time. The Quick Connect Kit plus an Active Aqua chiller is the fastest way to build a stock tank cold plunge that holds 39°F: most installs take about an hour, and you fill the tub the same day. The Active Aqua connections for your chiller size are in the box.

Choose your chiller: 1/4 HP for barrels and tubs to 92 gal. 1/2 HP for 100 gal stock tanks and insulated 150 gal tanks in mild climates. 1 HP for uninsulated 150 gal tanks, hot climates and heavy daily use. Not sure? Take the Chiller Finder.

Chiller Size

PRODUCT DETAILS

  • Install time: about an hour, including drilling and leak testing
  • Holds: 39°F to 90°F, set it and the chiller cycles automatically
  • You add: the tub and an optional cover
  • Ships: UPS Ground in two boxes from Texas. Guide and install video emailed at checkout.

Bundle and save

Buying the kit and chiller together costs less than buying them separately.

Why quick connect

Glued PVC is permanent, which is a problem the day you want to change the layout, move the tub or store it for winter. Quick connect fittings release by hand and the clamped hose loosens with a screwdriver, so the system comes apart and goes back together without cutting. Same trusted components as our Complete kit:

  • Danner Aqua-Mag 1200: the American-made pump DIY builders have run 24/7 for a decade, five-year warranty
  • Ambohr SPA-124 ozone with the InlineO3 injector, so ozone mixes in the loop with no separate bypass
  • Active Aqua chiller: voted best chiller by the cold plunge community, titanium evaporator, Boost mode
  • Ball valves and an insulated filter sleeve: isolate the tub for service, keep condensation off the housing

Which chiller size should you choose?

Most 100 gallon stock tank builders want the 1/2 HP. Go 1 HP if your 150 gallon tank is not insulated, the chiller sits somewhere over 85°F, several people plunge daily, or the tub is over 150 gallons.

Your tub Indoor or mild climate Hot climate or heavy use
Barrel, ceramic tub, up to 92 gal 1/4 HP 1/2 HP
Rubbermaid 100 gal 1/2 HP 1 HP
Rubbermaid 150 gal 1/2 HP if insulated 1 HP
150 to 250 gal, two-person 1 HP 1 HP

Outdoors, an insulated cover does more for run time than a bigger chiller.

What you still need

  • A tub. Rubbermaid 100 or 150 gallon stock tank, or any tub with a flat wall up to 1 1/2 inches thick, up to about 300 gallons. Tubs with 1/2 inch ports need a reducer.
  • An insulated cover (optional, recommended outdoors). We will offer the matching size after you choose your chiller.
  • A GFCI protected 120V outlet. Standard home GFCI outlet
  • Tools: drill, 1 3/4 inch hole saw, PVC hose cutter, screwdriver, channel-lock pliers. 2 screws to mount filter housing.

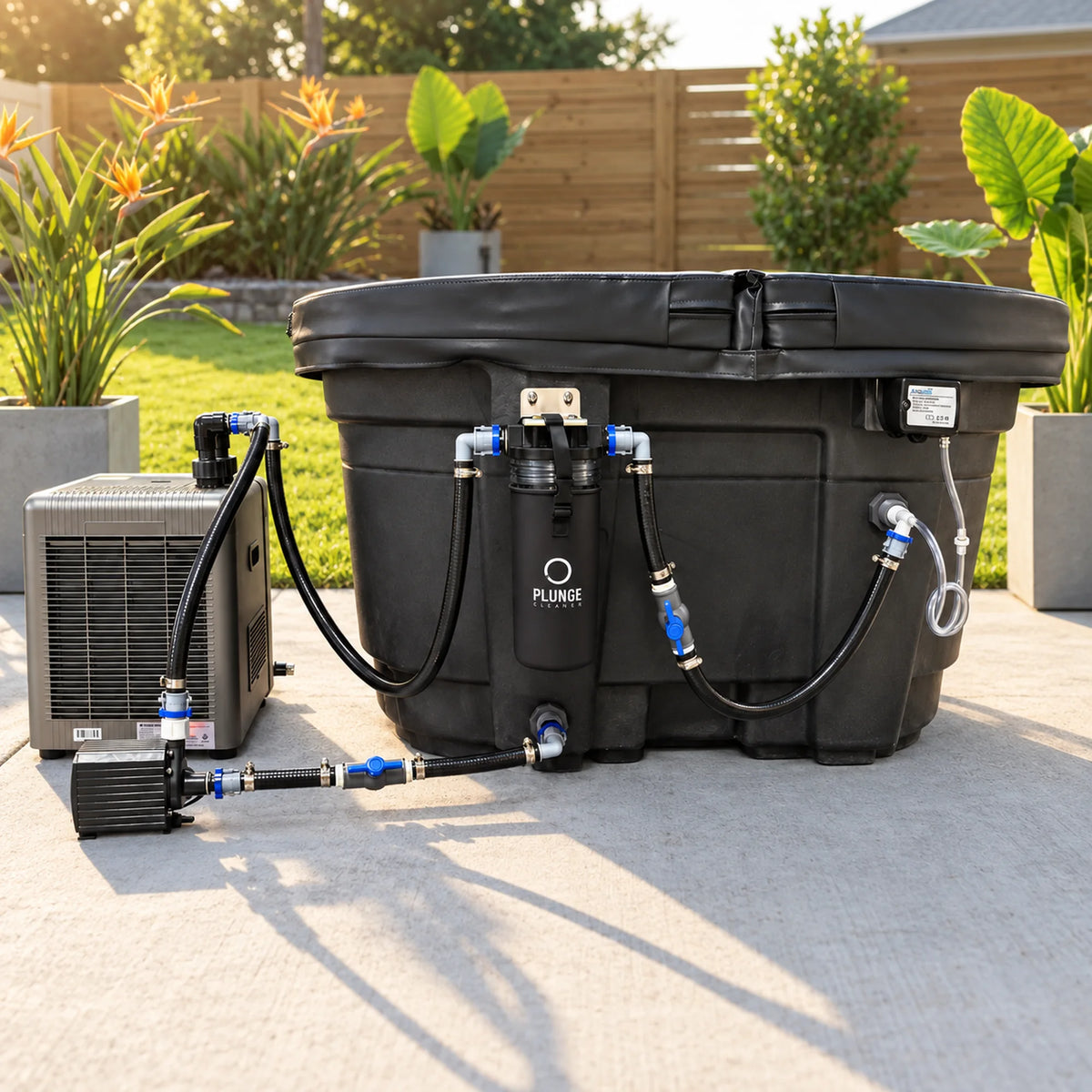

How the install goes

  1. Drill two 1 3/4 inch bulkhead holes and install the bulkheads.
  2. Mount the filter housing either on handle of 100 gal Rubbermaid stock tank or wall behind plunge
  3. Cut the flex hose to your layout and clip the fittings together, with ball valves on each side of the tub.

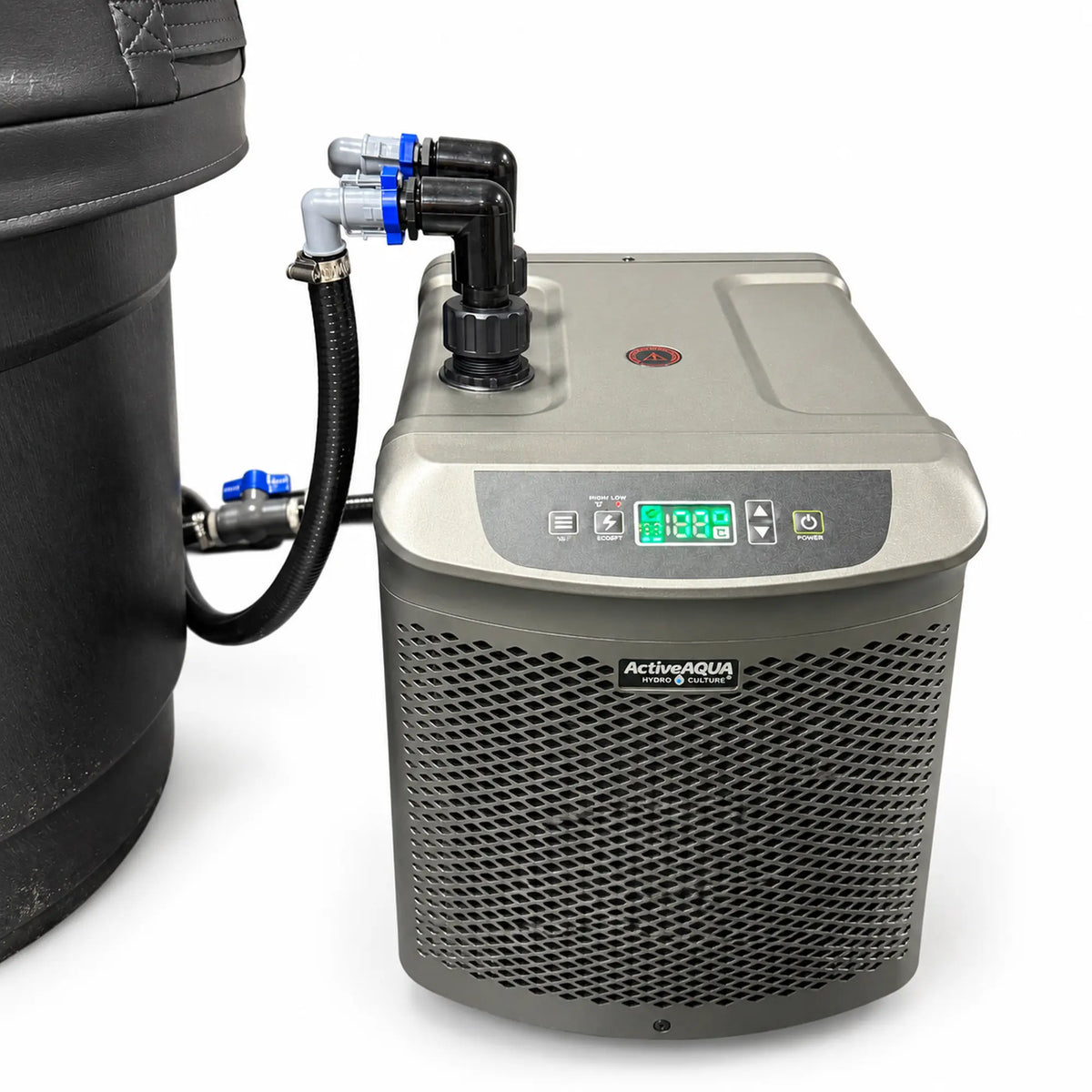

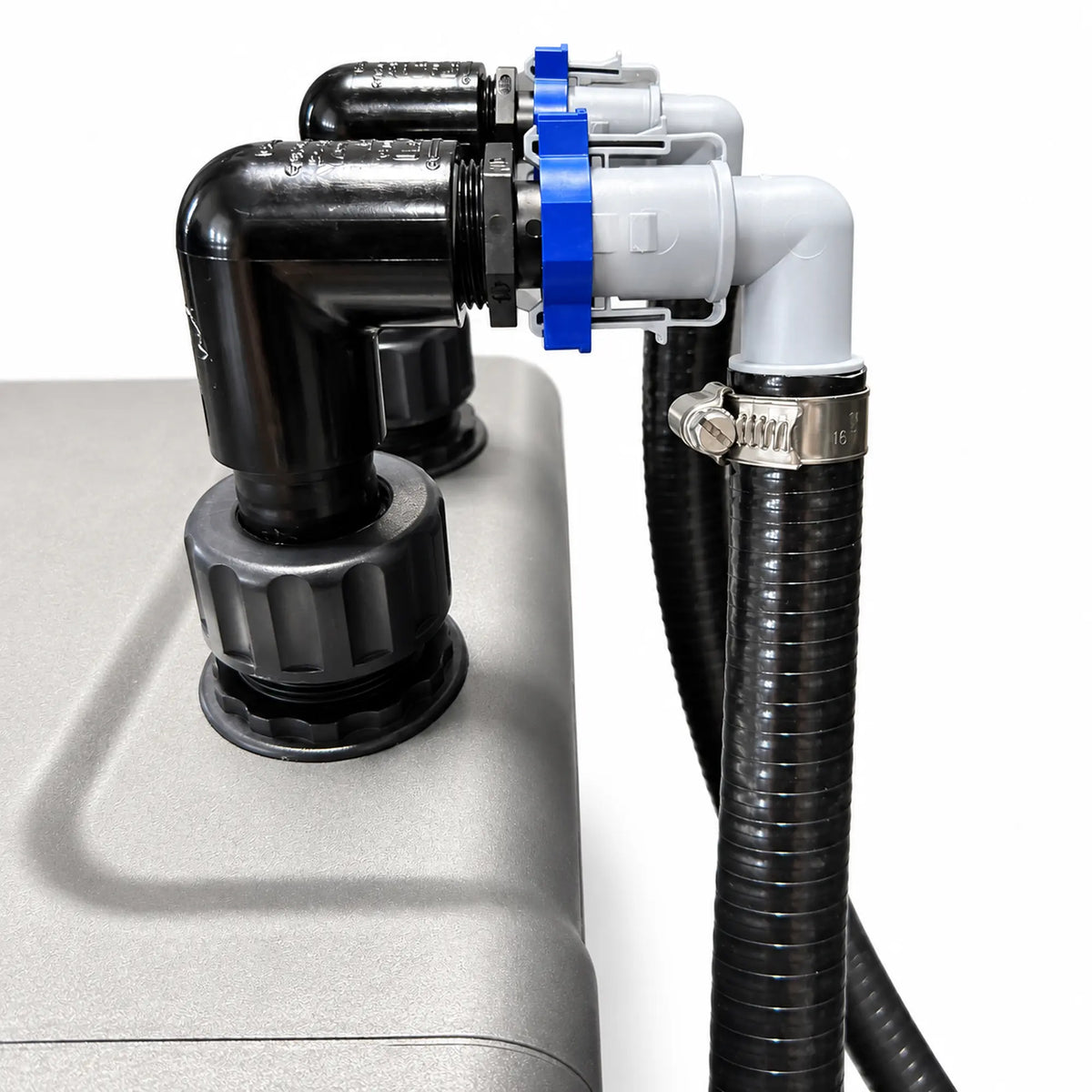

  4. Thread the included Active Aqua connections onto the chiller and connect the ozone line.
  5. Fill plunge with water, plug into a GFCI outlet, press Boost, check the connections.

Watch the full install video before the box arrives. Stuck mid-build? Email us.

Quick Connect or Complete Build Kit?

If this plunge is never moving and you are comfortable cementing PVC, the Complete DIY Kit with Active Aqua Chiller is $100 less at every chiller size, with the same pump, ozone, filtration and chiller. Already own a chiller with 3/4 inch NPT ports? Get the Quick Connect Kit on its own.

Warranty and support

  • Active Aqua chiller: one-year manufacturer warranty, ships new from an authorized dealer
  • Danner pump: five-year limited warranty
  • Every Plunge Crafters product in the box: one-year warranty
  • Texas-based, BBB Accredited business. The people who answer your build questions packed the box.

May be eligible for HSA or FSA payment with a Letter of Medical Necessity through Truemed. Look for the Truemed option at checkout.

PRODUCT SPECS

  • 1/4 HP: 3,010 BTU/hr, 40 to 92 gal, 120V, 4.7A, 18 x 13 x 17 in, 48.5 lb
  • 1/2 HP: 4,020 BTU/hr, 90 to 172 gal, 120V, 5.8A, 19 x 14 x 19 in, 48.5 lb
  • 1 HP: 10,050 BTU/hr, 80 to 250 gal, 120V, 10.2A, 21 x 15 x 20 in, 75 lb
  • All sizes: set point 39 to 90°F, titanium evaporator, Boost mode, compressor protection, memory backup, ETL listed, indoor or covered outdoor, 12 inches of clearance
  • Pump: Danner Aqua-Mag 1200, magnetic drive, up to 1,200 GPH, 120V
  • Pump electrical: 120V, 60Hz, 110W max, 1.5A, 10 ft grounded 3-prong cord, UL listed, thermally protected
  • Ozone electrical: 110V, 5W (under 0.1A)
  • Filtration: 10 inch housing with insulated sleeve, two 50 micron cartridges. Ozone: Ambohr SPA-124 with InlineO3 injector
  • Plumbing: 3/4 inch quick connect fittings, 10 ft flex hose, ball valves; bulkheads fit walls up to 1 1/2 inches thick; systems up to 300 gallons
  • Electrical: GFCI protected 120V outlet. The 1 HP draws 10.2A and should run on its own circuit. No undersized extension cords. If unsure, have a licensed electrician check.
  • Shipping: UPS Ground, two boxes. Kit about 20 lb; chiller 49, 57 or 81 lb boxed.

What's Included

  • Active Aqua chiller in your chosen size: 1/4 HP (3,010 BTU/hr, 40 to 92 gal), 1/2 HP (4,020 BTU/hr, 90 to 172 gal) or 1 HP (10,050 BTU/hr, 80 to 250 gal)
  • Active Aqua 3/4 inch NPT connections sized for your chiller
  • Danner Aqua-Mag 1200 pump, up to 1,200 GPH, continuous duty
  • Ambohr SPA-124 ozone generator with tubing and check valve, plus the InlineO3 injector
  • 10 inch filter housing with bracket, wrench, ChillGuard XL insulated sleeve and two 50 micron cartridges
  • 10 ft of 3/4 inch flex hose, quick connect fitting assortment, ball valves, bulkheads, 304 stainless clamps, thread seal tape
  • Quick Connect Build Guide and installation video, emailed at checkout

Not included: tub, cover, mounting hardware, tools.

  • Active Aqua chiller in your chosen size: 1/4 HP (3,010 BTU/hr, 40 to 92 gal), 1/2 HP (4,020 BTU/hr, 90 to 172 gal) or 1 HP (10,050 BTU/hr, 80 to 250 gal)
  • Active Aqua 3/4 inch NPT connections sized for your chiller
  • Danner Aqua-Mag 1200 pump, up to 1,200 GPH, continuous duty
  • Ambohr SPA-124 ozone generator with tubing and check valve, plus the InlineO3 injector
  • 10 inch filter housing with bracket, wrench, ChillGuard XL insulated sleeve and two 50 micron cartridges
  • 10 ft of 3/4 inch flex hose, quick connect fitting assortment, ball valves, bulkheads, 304 stainless clamps, thread seal tape
  • Quick Connect Build Guide and installation video, emailed at checkout

Not included: tub, cover, mounting hardware, tools.

SHIPPING & DELIVERY

We strive to process and ship all orders received before 3PM CST the day the order was received. Orders received after 3PM CST will be shipped the next business day. You will receive an email notification with tracking information once your order has been shipped.

Check out our Shipping Policy for additional details.

MONEY BACK GUARANTEE

We stand behind the quality and performance of every Plunge Crafters product. If for any reason you're not completely satisfied within 30 days of delivery, simply contact our support team to return the product in its original condition and packaging.

How it works:

  • Submit your return request within 30 calendar days of receiving your order.
  • Return the unused product in its original packaging.
  • Once received and inspected, your refund will be processed within 5–7 business days.
  • Free Shipping
  • 1-Year Warranty
  • US Support

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Payment methods
  • Amazon
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • BLIK
  • Diners Club
  • Discover
  • EPS
  • Google Pay
  • iDEAL Wero
  • JCB
  • Maestro
  • Mastercard
  • Multibanco
  • MobilePay
  • PayPal
  • Satispay
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

Need Help?

Our usual reply time

A few minutes

DIY Cold Plunge Quick Connect Kit with Active Aqua Chiller
  • Free Shipping
  • 1-Year Warranty
  • US Support

$1,099.95$1,299.95

4 interest-free installments, or from $274.98/mon with  Save up to 15% by paying with FSA/HSA

BEST COLD
PLUNGE CHILLER

Thousands of Happy Plungers and Counting

Thousands of recovery sessions, countless trips for ice avoided - and the verdict is in: Active Aqua Cold Plunge Chiller is being called the “best chiller on the market.” Don’t just take our word for it. See how real customers are transforming their routines, pushing past limits and feeling better every single day.

ADD TO CART

BENEFITS OF COLD PLUNGING

Revitalize Your Body & Mind with Proven Cold Therapy Benefits

Need help with this purchase?

Our cold plunge experts are ready to help - available daily Monday - Friday from 9 AM to 5 PM CST.

COMPARE & SEE WHY PLUNGE CRAFTERS WINS

NOT ALL COLD PLUNGES ARE MADE THE SAME

Other Cold Plunges
Standard Spa Chillers
DURABILITY YOU CAN TRUST
Military-grade engineering
Plastic/low-grade materials
Prone to wear & leaks
SETUP IN MINUTES
Ready in 5-10 mins, minimal setup required
Complicated Setup
Often requires technician
INDOOR & COVERED OUTDOOR USE
Rugged design
Indoor Use Only
Not weatherproof
CUSTOMER SUPPORT THAT CARES
US-based, fast response
Limited or slow
Long wait times
FULL WARRANTY COVERAGE
12-month comprehensive warranty
Not available
Repairs often not covered
MONEY BACK GUARANTEE
Try risk-free for 30 days
Not available
Repairs often not covered
EASY RETURNS & FAST SHIPPING
Ships fast from our Dallas TX warehouse
No returns of trials
No refunds or slow logistics

FREQUENTLY ASKED QUESTIONS

Why quick connect instead of glued PVC?

Speed and flexibility. No primer, no cement, no waiting to fill, and the plumbing comes apart later for cleaning, moving or winter storage. If the plunge is never moving and you want the lowest price, our Complete DIY Kit with glued PVC is also a great option.

Which tubs does this kit fit?

Rubbermaid 100 and 150 gallon stock tanks and any tub with a flat wall up to 1 1/2 inches thick, up to about 300 gallons. Tubs with 1/2 inch, 1 inch or BSP ports need an adapter, sold separately.

What tools do I need, and how long does it take?

Drill, 1 3/4 inch hole saw, PVC hose cutter, screwdrivers and channel-lock pliers. Most installs, including drilling and leak testing, take about an hour.

Which chiller size for a 100 versus 150 gallon stock tank?

For a 100 gallon tank, the 1/2 HP works indoors or in a mild climate. If that tank is uninsulated and sits in a hot climate, choose the 1 HP. For a 150 gallon tank, choose the 1 HP unless the tank is insulated and the chiller and plunge are out of the heat, in which case the 1/2 HP can get by. The 1/4 HP is for barrels and tubs up to 92 gallons.



Can I move or reconfigure the system later?

Yes. Close the ball valves, release the fittings and loosen the clamps, and the pump, filter and chiller disconnect without draining the tub. Reposition for a new layout, store flat for winter, or connect a bigger chiller later with the matching adapter.

Can the chiller sit outside?

Under cover, yes: garage, basement or covered patio. Not in open rain or direct sun. Keep it upright with 12 inches of clearance on the sides and 18 inches in the back.

What warranty comes with the kit and chiller?

The Active Aqua chiller carries a one-year manufacturer warranty, the Danner pump has a five-year limited warranty, and every Plunge Crafters product in the box carries our one-year warranty. We are a Texas-based, BBB Accredited business that stands behind what we sell.

Is this cold plunge kit HSA or FSA eligible?

Yes, through our partnership with Truemed. Select Truemed at checkout to qualify for the Letter of Medical Necessity you need to pay with HSA or FSA funds.

Do I need a special outlet or a dedicated circuit?

All three chillers use a standard 120V plug. The 1/4 HP (4.7A) and 1/2 HP (5.8A) run on a normal 15 amp circuit with the pump. Ideally you would have the 1 HP (10.2A) run on a 20 amp circuit. Always use a GFCI protected outlet, skip extension cords, and call a licensed electrician if you are unsure.

Do I still need chemicals with the ozone generator?

Most of our customers run ozone plus the 50 micron cold plunge sediment filters and use no chemicals. Ozone oxidizes bacteria, body oils and organics, then breaks down into oxygen. Rinse before you get in and change the cartridge on schedule, and water changes stretch to weeks.

How does it ship?

UPS Ground from Texas in two boxes, one for the kit and one for the chiller. Your build guide and install video are emailed as soon as you order.

Does the Active Aqua chiller come with a pump?

No. Active Aqua chillers need an external pump, and this kit includes one: the American-made Danner Aqua-Mag 1200, with a five-year limited warranty. It moves water from the tub through the filter and chiller and back, so there is nothing else to buy for circulation.

How does the 30-day return process work?

If you are not satisfied within 30 days of delivery, contact our support team at info@plungecrafters.com to initiate a return. Return the product unused in its original packaging and we will issue a refund once the item is received and inspected. Refunds are processed within 5 to 7 business days of receiving the return. Our support team is available seven days a week from 7 AM to 8 PM CST to walk you through the process if needed.

Have additional questions?

We would be glad to help answer any other questions you may have. Reach out via chat or our Contact Us page.
