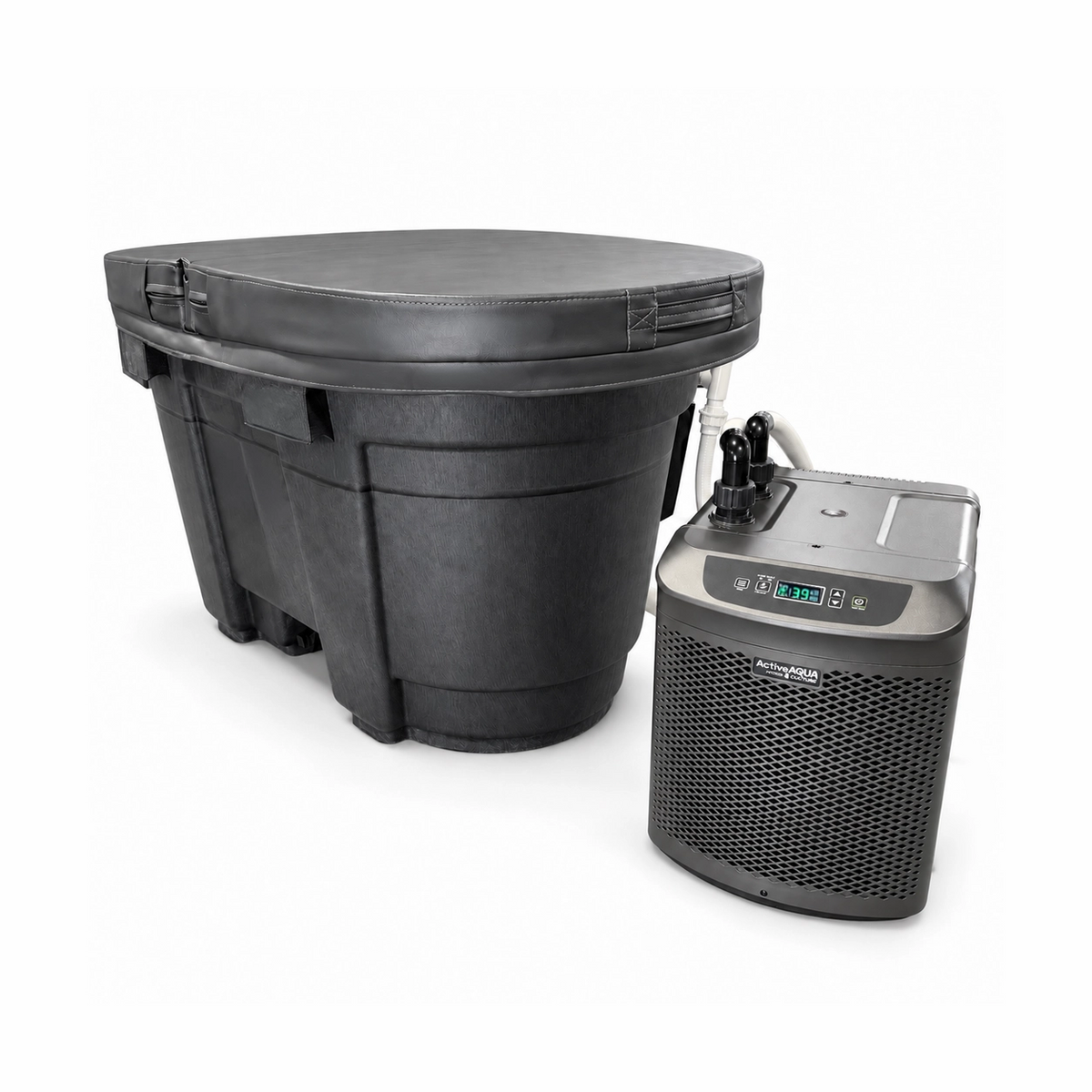

DIY Cold Plunge Kit with Active Aqua Chiller

DIY Cold Plunge Kit with Active Aqua Chiller

Regular price $1,199.95 USD
Sale price $1,199.95 USD Regular price $1,399.95 USD

The lowest-cost way to build a stock tank cold plunge that holds 39°F. Our Complete DIY Build Kit plus an Active Aqua chiller, with the slip fittings that connect them already in the box. Bundled, it costs $65.95 to $125.95 less than buying the kit and chiller separately. Add a Rubbermaid 100 or 150 gallon stock tank and build it this weekend.

Choose your chiller: 1/4 HP for barrels and tubs to 92 gal. 1/2 HP for 100 gal stock tanks and insulated 150 gal tanks in mild climates. 1 HP for uninsulated 150 gal tanks, hot climates and heavy daily use. Not sure? Take the Chiller Finder.

Chiller Size

PRODUCT DETAILS

  • Build time: 1 to 3 hours for first-time builders, plus PVC cure time
  • Holds: 39°F to 90°F, set it and the chiller cycles automatically
  • You add: the tub, an optional cover, PVC primer and cement
  • Ships: UPS Ground in two boxes from Texas

Bundle and save

Buying the kit and chiller together costs less than buying them separately.

Why this kit and chiller

The parts inside a $6,000 cold plunge are a pump, a filter, an ozone generator and a chiller. This bundle gives you the same class of components, matched to each other and to your tub:

  • Danner Aqua-Mag 1200: the American-made pump DIY builders have run 24/7 for a decade, five-year warranty
  • Ambohr SPA-124 ozone: the same sanitizer found inside many big-brand plunges, so most owners use no chemicals
  • Active Aqua chiller: voted best chiller by the cold plunge community, titanium evaporator, Boost mode
  • 3/4 inch plumbing throughout: the size finished tubs use, because 1/2 inch lines choke the pump

Which chiller size should you choose?

Most 100 gallon stock tank builders want the 1/2 HP. Go 1 HP if your 150 gallon tank is not insulated, the chiller sits somewhere over 85°F, several people plunge daily, or the tub is over 150 gallons.

Your tub Indoor or mild climate Hot climate or heavy use
Barrel, ceramic tub up to 92 gal 1/4 HP 1/2 HP
Rubbermaid 100 gal stock tank 1/2 HP 1 HP
Rubbermaid 150 gal stock tank 1/2 HP If tub is insulated 1 HP
150 to 250 gal, two-person 1 HP 1 HP

Outdoors? An insulated cover helps your chiller run less!

What you'll still need

  • A tub. Rubbermaid 100 or 150 gallon stock tank, or any tub with a flat wall up to 1 1/2 inches thick.
  • An insulated cover (optional, recommended outdoors). We will offer the matching size after you choose your chiller.
  • A standard GFCI protected 120V outlet. The 1 HP should have its own circuit.
  • Tools: drill, hole saw, PVC primer and cement

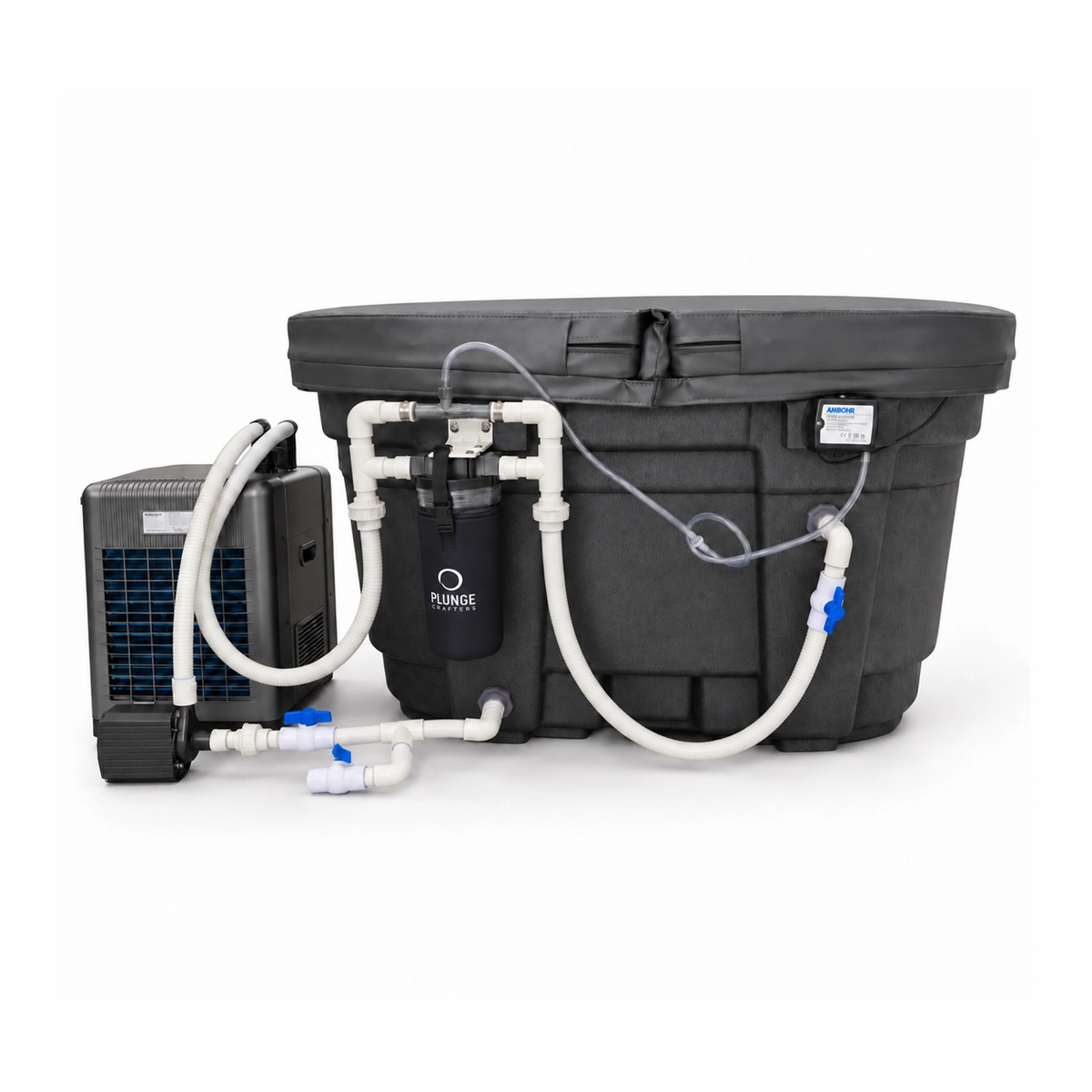

How the build goes

  1. Drill two bulkhead holes in the tank wall and seat the bulkheads.
  2. Mount the filter housing.
  3. Dry-fit the 3/4 inch plumbing (tank, pump, filter, chiller, tank), then prime and cement.
  4. Connect the chiller with the included Active Aqua fittings and connect the ozone line.
  5. Let the cement cure, fill, plug into a GFCI outlet, press Boost.

The illustrated guides cover every step. Stuck mid-build? Email us.

Complete Build Kit or Quick Connect?

This bundle uses glued PVC: permanent, leak-proof and the lowest price. If you would rather skip the cement, finish in about an hour, and be able to take the plumbing apart later, the Quick Connect Kit with Active Aqua Chiller is great option. Already own a chiller? Get the kit on its own.

Warranty and support

  • Active Aqua chiller: one-year manufacturer warranty
  • Danner pump: five-year limited warranty
  • Every Plunge Crafters product in the box: one-year warranty
  • Texas-based, BBB Accredited business. The people who answer your build questions packed the box.

HSA or FSA eligible through Truemed. Look for the Truemed option at checkout.

PRODUCT SPECS

  • 1/4 HP: 3,010 BTU/hr, 40 to 92 gal, 120V, 4.7A, 18 x 13 x 17 in, 48.5 lb
  • 1/2 HP: 4,020 BTU/hr, 90 to 172 gal, 120V, 5.8A, 19 x 14 x 19 in, 48.5 lb
  • 1 HP: 10,050 BTU/hr, 80 to 250 gal, 120V, 10.2A, 21 x 15 x 20 in, 75 lb
  • All sizes: set point 39 to 90°F, titanium evaporator, Boost mode, compressor protection, memory backup, ETL listed, indoor or covered outdoor, 12 inches of clearance on the sides and 18 inches on the back.
  • Pump: Danner Aqua-Mag 1200, magnetic drive, up to 1,200 GPH, 120V
  • Pump electrical: 120V, 60Hz, 110W max, 1.5A, 10 ft grounded 3-prong cord, UL listed, thermally protected
  • Ozone electrical: 110V, 5W (under 0.1A)
  • Filtration: 10 inch housing, two 50 micron cartridges. Ozone: Ambohr SPA-124 with venturi
  • Plumbing: 3/4 inch Schedule 40 PVC and flex spa hose; bulkheads fit walls up to 1 1/2 inches thick
  • Electrical: GFCI protected 120V outlet. The 1 HP draws 10.2A. No undersized extension cords. If unsure, have a licensed electrician check.
  • Shipping: UPS Ground, two boxes. Kit about 21 lb; chiller 49, 57 or 81 lb boxed.

What's Included

  • Active Aqua chiller in your chosen size: 1/4 HP (3,010 BTU/hr, 40 to 92 gal), 1/2 HP (4,020 BTU/hr, 90 to 172 gal) or 1 HP (10,050 BTU/hr, 80 to 250 gal)
  • Active Aqua 3/4 inch slip fittings sized for your chiller
  • Danner Aqua-Mag 1200 pump, up to 1,200 GPH, continuous duty
  • Ambohr SPA-124 ozone generator with venturi injector, tubing and check valve
  • 10 inch filter housing with two 50 micron cartridges
  • 3/4 inch plumbing kit: Schedule 40 PVC fittings, flex spa hose, bulkheads
  • Plumbing Build Guide and Water Filter Build Guide

Not included: tub, cover, PVC primer and cement, tools.

  • Active Aqua chiller in your chosen size: 1/4 HP (3,010 BTU/hr, 40 to 92 gal), 1/2 HP (4,020 BTU/hr, 90 to 172 gal) or 1 HP (10,050 BTU/hr, 80 to 250 gal)
  • Active Aqua 3/4 inch slip fittings sized for your chiller
  • Danner Aqua-Mag 1200 pump, up to 1,200 GPH, continuous duty
  • Ambohr SPA-124 ozone generator with venturi injector, tubing and check valve
  • 10 inch filter housing with two 50 micron cartridges
  • 3/4 inch plumbing kit: Schedule 40 PVC fittings, flex spa hose, bulkheads
  • Plumbing Build Guide and Water Filter Build Guide

Not included: tub, cover, PVC primer and cement, tools.

SHIPPING & DELIVERY

We strive to process and ship all orders received before 3PM CST the day the order was received. Orders received after 3PM CST will be shipped the next business day. You will receive an email notification with tracking information once your order has been shipped.

Check out our Shipping Policy for additional details.

MONEY BACK GUARANTEE

We stand behind the quality and performance of every Plunge Crafters product. If for any reason you're not completely satisfied within 30 days of delivery, simply contact our support team to return the product in its original condition and packaging.

How it works:

  • Submit your return request within 30 calendar days of receiving your order.
  • Return the unused product in its original packaging.
  • Once received and inspected, your refund will be processed within 5–7 business days.
  • Free Shipping
  • 1-Year Warranty
  • US Support

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Payment methods
  • Amazon
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • BLIK
  • Diners Club
  • Discover
  • EPS
  • Google Pay
  • iDEAL Wero
  • JCB
  • Maestro
  • Mastercard
  • Multibanco
  • MobilePay
  • PayPal
  • Satispay
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

Need Help?

Our usual reply time

A few minutes

DIY Cold Plunge Kit with Active Aqua Chiller
  • Free Shipping
  • 1-Year Warranty
  • US Support

$1,199.95$1,399.95

4 interest-free installments, or from $249.98/mon with  Save up to 16% by paying with FSA/HSA

BEST COLD
PLUNGE CHILLER

Thousands of Happy Plungers and Counting

Thousands of recovery sessions, countless trips for ice avoided - and the verdict is in: Active Aqua Cold Plunge Chiller is being called the “best chiller on the market.” Don’t just take our word for it. See how real customers are transforming their routines, pushing past limits and feeling better every single day.

ADD TO CART

BENEFITS OF COLD PLUNGING

Revitalize Your Body & Mind with Proven Cold Therapy Benefits

Need help with this purchase?

Our cold plunge experts are ready to help - available daily Monday - Friday from 9 AM to 5 PM CST.

COMPARE & SEE WHY PLUNGE CRAFTERS WINS

NOT ALL COLD PLUNGES ARE MADE THE SAME

Other Cold Plunges
Standard Spa Chillers
DURABILITY YOU CAN TRUST
Military-grade engineering
Plastic/low-grade materials
Prone to wear & leaks
SETUP IN MINUTES
Ready in 5-10 mins, minimal setup required
Complicated Setup
Often requires technician
INDOOR & COVERED OUTDOOR USE
Rugged design
Indoor Use Only
Not weatherproof
CUSTOMER SUPPORT THAT CARES
US-based, fast response
Limited or slow
Long wait times
FULL WARRANTY COVERAGE
12-month comprehensive warranty
Not available
Repairs often not covered
MONEY BACK GUARANTEE
Try risk-free for 30 days
Not available
Repairs often not covered
EASY RETURNS & FAST SHIPPING
Ships fast from our Dallas TX warehouse
No returns of trials
No refunds or slow logistics

FREQUENTLY ASKED QUESTIONS

Do I need plumbing experience?

No. The guides use photos for every step, and first-time builders finish in one to three hours. If you can drill a hole and cement a PVC joint, you can build this.

Which tubs does this kit fit?

Written for the Rubbermaid 100 and 150 gallon stock tanks, but it works on any tub with a flat wall up to 1 1/2 inches thick: inflatable tubs, an Ice Barrel 500, chest freezers. Tubs with 1/2 inch ports need a 1/2 to 3/4 inch reducer. Email us a photo and we will confirm.

What tools do I need?

A drill, a hole saw for the bulkheads, PVC primer and cement, a PVC cutter or hacksaw, and a screwdriver with a few screws for the filter housing.

Which chiller size for a 100 versus 150 gallon stock tank?

For a 100 gallon tank, the 1/2 HP works indoors or in a mild climate. If that tank is uninsulated and sits in a hot climate, choose the 1 HP. For a 150 gallon tank, choose the 1 HP unless the tank is insulated and the chiller and plunge are out of the heat, in which case the 1/2 HP can get by. The 1/4 HP is for barrels and tubs up to 92 gallons.



How cold does it get, and how fast?

Set anywhere from 39°F to 90°F and the chiller holds it within a couple of degrees. Boost mode runs at maximum output after a fill or water change. A covered, correctly sized tank reaches plunge temperature in hours, not days.

Can the chiller sit outside?

Under cover, yes: garage, basement or covered patio. Not in open rain or direct sun. Keep it upright with 12 inches of clearance on the sides and 18 inches at the back.

Should I choose the Complete Build Kit or the Quick Connect Kit?

This listing is the Complete Build Kit, which uses glued PVC plumbing. It is permanent and the lowest price, and you supply the primer and cement. The Quick Connect Kit skips the glue, installs in about an hour and lets you take the plumbing apart later, which suits renters and anyone who may move or store the plunge. The pump, ozone generator, filter and chiller are the same. See the Quick Connect Cold Plunge DIY Kit with Active Aqua Chiller.

Is this cold plunge kit HSA or FSA eligible?

Yes, through our partnership with Truemed. Select Truemed at checkout to qualify for the Letter of Medical Necessity you need to pay with HSA or FSA funds.

Do I need a special outlet or a dedicated circuit?

All three chillers use a standard 120V plug. The 1/4 HP (4.7A) and 1/2 HP (5.8A) run on a normal 15 amp circuit with the pump. The 1 HP (10.2A) should have its own circuit. Always use a GFCI protected outlet, skip extension cords, and call a licensed electrician if you are unsure.

Do I still need chemicals with the ozone generator?

Most of our customers run ozone plus the cartridge filter and use no chemicals. Ozone oxidizes bacteria, body oils and organics, then breaks down into oxygen. Rinse before you get in and change the cartridge on schedule, and water changes stretch to weeks.

How does it ship?

UPS Ground from Texas in two boxes, one for the kit and one for the chiller. Your build guides are emailed as soon as you order.

Does the Active Aqua chiller come with a pump?

No. Active Aqua chillers need an external pump, and this kit includes one: the American-made Danner Aqua-Mag 1200, with a five-year limited warranty. It moves water from the tub through the filter and chiller and back, so there is nothing else to buy for circulation.

How does the 30-day return process work?

If you are not satisfied within 30 days of delivery, contact our support team at info@plungecrafters.com to initiate a return. Return the product unused in its original packaging and we will issue a refund once the item is received and inspected. Refunds are processed within 5 to 7 business days of receiving the return. Our support team is available seven days a week from 7 AM to 8 PM CST to walk you through the process if needed.

Have additional questions?

We would be glad to help answer any other questions you may have. Reach out via chat or our Contact Us page.
