Plunge Gen 1 Chiller Not Working? How to Diagnose It and Replace It Yourself
A Plunge Gen 1 chiller that won't power on, throws an error or stops cooling is usually done once the basics check out. Here is how to confirm it, what your replacement options cost, and how to swap in an Active Aqua 1 HP using your factory connections.
You set your Plunge to 39 degrees last night. This morning the chiller display is dark, or it is flashing a code, and the water reads 61. The jets are still running, so the tub looks fine. It is not cold. On a first generation Plunge, the chiller is the most expensive part to replace and the one owners put off diagnosing the longest. We are an independent cold plunge company and are not affiliated with Plunge, but we have helped hundreds of Plunge Gen 1 owners get back to cold water, and the chiller is usually the last big part they replace after the pump and the ozone generator.
Quick answer: Before you buy anything, test the electrical outlet, test the chiller on a separate outlet, confirm water flow and look up any error code. If the chiller has power and good flow and still will not cool, the controller or other non serviceable component has usually failed and replacement beats repair. The Active Aqua 1 HP threads straight onto your Gen 1's factory connections, keeps your factory pump and filter, and costs about a third of Plunge's own Pro Chiller retrofit.
Jump to the diagnosis | Compare your replacement options | See the install steps
Already know your chiller is dead? Skip to the Active Aqua 1 HP Gen 1 Replacement Chiller.
Why Do Plunge Gen 1 Chillers Fail?
The Gen 1 chiller is a stand-alone refrigeration unit behind the tub, and it fails for the same reasons most small chillers do: heat it cannot shed, water it cannot move, power it was not built to handle or water got into the controller.
Here is the layout, per Plunge's Gen 1 setup guide. The tub's pump feeds water into the chiller's inlet, the chiller cools it, and the cold water flows back into the tub through the jets. The chiller plugs into an outlet inside the tub's electrical box. Two threaded connections and two seals hold it to the tub, which is why a replacement can be a short job.
- Heat it cannot shed. Plunge calls for 12 inches of clearance and cleaning the chiller screens every 60 to 90 days. A unit jammed against a wall or packed with dust and hair runs longer and hotter, and the compressor and internal components pay for it.
- Lost water flow. If the Gen 1 pump dies or the filter clogs while the compressor keeps running, water inside the chiller can freeze and crack internal parts. A dead pump is one of the more common ways a healthy chiller gets taken out.
- Power problems. Plunge does not support extension cords on the Gen 1 and says using one can void warranty claims. Undersized cords, shared circuits and surges all stress the compressor and control board.
Age does the rest. The Gen 1 shipped with a 1 year limited warranty that has expired for nearly every owner still running one. Once the sealed side fails, from a compressor that will not start or a slow refrigerant leak, the repair needs an EPA Section 608 certified technician, and the bill often lands close to the price of a new chiller, if it can even be repaired at all.
How to Diagnose a Plunge Gen 1 Chiller Before You Replace It
Work through these checks in order and stop when one explains the problem. None need tools. Steps 5 and 6 come from Plunge's Gen 1 cooling troubleshooting guide.
- Confirm the outlet has power. Plug a phone charger into the outlet feeding your Plunge. If it is dead, reset the GFCI and check your breaker before touching anything else.
- Take the electrical box out of the equation. If the display is dark, unplug the chiller from the outlet inside the Gen 1 electrical box and plug it into a separate GFCI outlet. If it powers up there, the problem is on the tub's power side and your chiller is fine. If it stays dark on a known good outlet, the chiller's power supply or control board has failed.
- Write down any error code. Look it up in Plunge's help center before you condemn the unit. Many chiller codes point to low flow or a sensor reading, not a dead compressor.
- Check water flow. Plunge describes healthy flow as a 3 to 4 inch stream from the jets. Weak or no flow means the pump or filter is the problem, not the chiller. Our guide on diagnosing a Gen 1 pump that will not run covers that side.
- Feel the air coming off the chiller. While it is calling for cold, warm or hot air means the refrigeration side is working. Room temperature air means it is not moving heat.
- Run an air purge, then try a separate outlet. Trapped air can stop the water from cooling. Run an air purge for 2 hours, then run the chiller on a separate outlet for another 2 hours.
Here is the quick reference version:
| What You Find | Likely Cause | Next Step |
|---|---|---|
| Display dark, outlet dead | Tripped GFCI or breaker | Reset, then retest before replacing anything |
| Dark on the box outlet, works on a wall outlet | Tub power side, not the chiller | Inspect the electrical box and keep your chiller |
| Dark on a known good outlet | Failed power supply or control board | Replace the chiller |
| Error code on the display | Often low flow or faulty temp sensor reading | Look up the code, fix flow, or replace temp sensor then retest |
| Power and good flow, still not cooling after a purge | Failed compressor or refrigerant leak | Replace the chiller |
| Chiller running, pump silent | Dead Gen 1 pump | Fix the pump first, then check the chiller for freeze damage |
Power, good flow, and still no cold water? The Active Aqua 1 HP is a direct replacement and threads onto your Gen 1's factory connections with no adapters.
Not sure what failed? Send us a photo of your chiller display, any error code and your electrical box, and we will help you confirm the problem before you order anything.
Plunge Gen 1 Chiller Replacement Options, Compared
Once you know the chiller itself has failed, you have three realistic paths. Which one fits depends on whether you want heat, app control and a factory install, or cold water back for the least money.
Option 1: Repair the original through Plunge
If your unit is still covered, or you want to keep the tub fully original, start with Plunge support. We have been told Plunge charges a $185 diagnostic fee to open a support case, so ask about cost up front. A sealed system repair on an out of warranty chiller is where this path usually stops making sense.
Option 2: Plunge's Pro Chiller Gen 2 retrofit
Plunge says its Pro Chiller Gen 2 can be retrofitted to the original Plunge tub. It is a .75 HP unit with a 37°F minimum, an optional heater to 104°F, Wi-Fi app control and free on-site installation, listed at $3,490 as of October 2026. If you want hot and cold in one unit installed for you, this is a path.
Option 3: Replace with an Active Aqua 1 HP
This is the path we recommend for most Gen 1 owners. The Active Aqua 1 HP chiller threads onto the two connections already on your tub, your factory pump and filter stay in place, and you install it yourself. It is cold only, has no app and is a rock solid chiller.
| Plunge Repair | Plunge Pro Chiller Gen 2 | Active Aqua 1 HP | |
|---|---|---|---|
| Price | Diagnostic fee plus repair quote | $3,490 | $1,199.95 |
| Cooling | Original unit | .75 HP, 37°F minimum | 1 HP, 10,050 BTU per hour, 39°F minimum |
| Heating | Only if your unit had it | Optional heater to 104°F | No |
| Fit on a Gen 1 | Original | Retrofit | Threads onto factory connections, no adapters |
| Install | Through Plunge | Free on-site install | Self install, back to cold water the same day |
| Warranty | Set by Plunge at service | Set by Plunge | 1 year from Active Aqua, backed by the Plunge Crafters Guarantee |
For an out of warranty Gen 1 that just needs to get cold again, the Active Aqua 1 HP gets you there for the least money and downtime. If you want heat, app control or a professional install, go with Plunge.

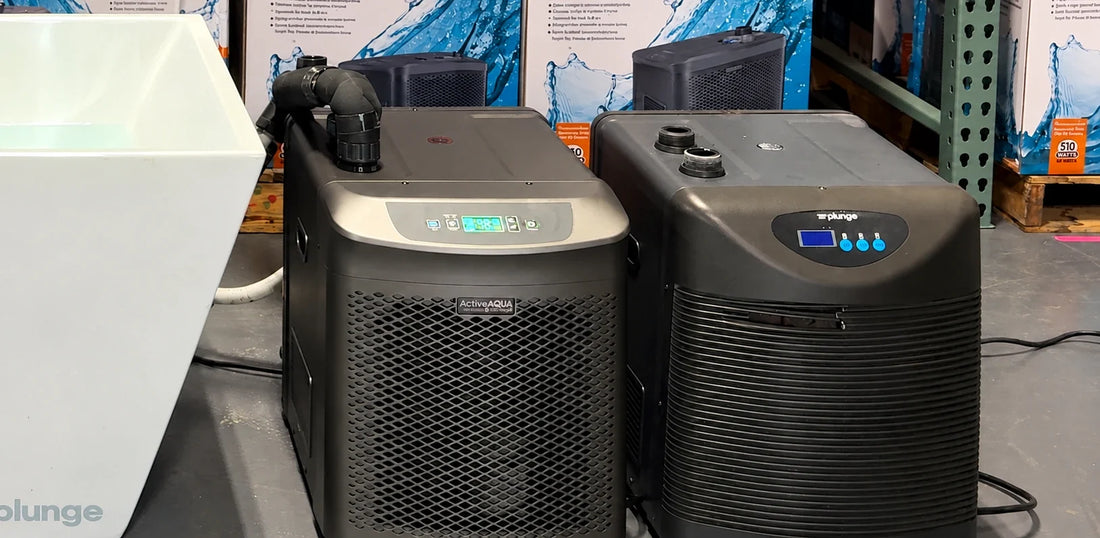

Why the Active Aqua 1 HP Fits the Plunge Gen 1
We match the Active Aqua 1 HP to the Gen 1 for two reasons: the Gen 1's factory connections thread straight onto its ports, and it has the headroom to hold a full Gen 1 tub cold in a hot garage or on a covered patio. Your pump and filter keep working exactly as before. There are no adapters, reducers or hoses to buy, and nothing to glue.
| Spec | Active Aqua 1 HP |
|---|---|
| Cooling capacity | 10,050 BTU per hour |
| Set point | 39°F to 90°F, cycles automatically to hold it |
| Rated tub size | 80 to 250 gallons |
| Boost mode | 2 hour accelerated cooling, or continuous 24/7 maximum cooling |
| Power | 120V standard plug, 1100W, 10.2A |
| Size and weight | 21" L x 15" W x 20" H, 75 lbs |
| Build | Pure titanium evaporator, compressor protection, ETL listed, set point memory after a power outage |
Two details matter on a Gen 1 specifically:
- Plug it into its own GFCI wall outlet, not the outlet in the Gen 1 electrical box. The 1 HP draws 10.2 amps by itself, and Plunge spec'd the standard Gen 1 to run its chiller and pump on one 15 amp breaker. A dedicated GFCI outlet keeps you from tripping breakers on a hot afternoon. Never use an extension cord.
- Plan the footprint and placement. It needs 12 inches of open space on every side, including the back and top, and it is rated for indoor or covered outdoor use only. Keep it out of rain and direct sun.
We are an authorized Active Aqua dealer, so your chiller ships new from our Dallas, Texas warehouse with the full manufacturer warranty, and warranty claims run through us.
How to Replace a Plunge Gen 1 Chiller, Step by Step
This is a hand tool job with no glue and no electrician. The steps match the chapters in the video, so you can jump to the timestamp for any step.
What you need: the Active Aqua 1 HP, towels and a bucket for the water in the lines, and a GFCI wall outlet within reach of the chiller's cord. What you do not need: adapters, new hose, PVC cement or a new pump.
- Turn off the pump - Never disconnect hoses with water moving.
- Unplug the old chiller - Nothing in the loop should have power while you work.
- Disconnect the hoses - Unthread both connections from the old chiller. Water will come out of the lines, so have towels and a bucket ready. If the tub keeps draining through the open lines, lower the water level below the connections first.
- Remove the shipping caps - From the inlet and outlet ports on the new chiller.
- Move the seals to the new chiller - Pull the seals from your old connections and seat them on the new ports. This is what keeps the swap leak free, so make sure each one sits flat.
- Connect the pump line to the inlet - Thread the line from your Gen 1 pump onto the inlet, then the return line onto the outlet. Snug both by hand and check that they are straight and fully seated.
- Plug into a GFCI and power up - Use its own GFCI wall outlet, start the pump, and confirm water is flowing before the chiller starts cooling. If the chiller was tipped on its side in transport, stand it upright and wait 20 minutes before powering it on.
- Set your temperature - Pick anything from 39°F to 90°F. Press Boost once for a 2 hour accelerated cool down, or twice for continuous maximum cooling. The chiller remembers your set point after a power outage.
Check both connections for leaks in the first few minutes of flow and again after the first full cooling cycle.
➡ Everything you need except towels and an outlet comes in one box with the Active Aqua 1 HP Gen 1 Replacement Chiller.
How to Keep Your New Chiller Running
Most chiller failures are preventable. These habits come from Active Aqua's own operating guidance, and they would have saved plenty of original Gen 1 units too.
- Never run it without water flow. The pump has to run any time the chiller is on, or water inside can freeze and crack the cooling reservoir.
- Leave it on, not on a timer. The chiller cycles itself to hold your set point, so 24/7 operation is normal. Save the timer for your ozone generator.
- Clean the temperature probe. A wrong reading or inconsistent cooling often comes from mineral buildup on the probe. Clean it with 3 parts water to 1 part distilled white vinegar. If the sensor itself has failed, the Active Aqua replacement temperature sensor is a small, plug-and-play fix.
- Buy from an authorized dealer. The refrigeration system is factory sealed with no service ports, so a leak means a warranty replacement, not a recharge. Active Aqua's warranty runs through the original retailer and does not cover secondhand units or unauthorized sellers.
While You Have the Gen 1 Apart
If your Gen 1 is old enough to need a chiller, its other wear parts are the same age. Check them while the tub is already down:
- The pump. Weak flow is what freezes chillers. Our Plunge Gen 1 Water Pump Replacement Kit swaps the DC pump and transformer for a Danner 1200 that plugs into a standard GFCI outlet.
- The ozone generator. Cloudy water between changes? Our guide on diagnosing a Gen 1 ozone generator walks through the tests, and the SPA-124 ozone generator is the replacement.
- The filter. A clogged filter starves your new chiller of flow. Our 10 x 2.5 inch cold plunge filters fit the Gen 1 housing.
Want to understand what is happening inside the box? Our breakdown of how a cold plunge chiller works covers the refrigeration cycle, and our guide to cold plunge chiller repair signs covers early warnings on any brand.
Frequently Asked Questions
Why did my Plunge Gen 1 chiller stop working?
The usual causes are water got into the controller, power problem, lost water flow, or a failed compressor or refrigerant leak inside the sealed system. Testing the outlet, testing the chiller on a separate outlet and checking flow at the jets tells you which one you have.
Can a Plunge Gen 1 chiller be repaired?
Power and flow problems often can. A failed compressor or refrigerant leak needs an EPA Section 608 certified technician, and on an out of warranty chiller that repair often costs close to a new unit. If your unit is still covered, contact Plunge support first.
What chiller replaces the Plunge Gen 1 chiller?
We use the Active Aqua 1 HP. The Gen 1's factory connections thread straight onto its ports, so it replaces the original chiller without adapters, new hoses or a new pump.
Do I need a new pump or adapters?
No. Your factory pump and filter stay in place, and you move the seals from the old chiller to the new one. If your Gen 1 pump has been weak or noisy, replace it now, since a failing pump can freeze a new chiller.
Can I plug the new chiller into the Gen 1 electrical box?
We recommend against it. The Active Aqua 1 HP draws 10.2 amps, and the standard Gen 1 runs its chiller and pump on one 15 amp circuit. Plug the new chiller into its own GFCI wall outlet, and never use an extension cord.
Can the Active Aqua 1 HP go outside?
Only under cover. It is approved for indoor and covered outdoor use, such as a garage or covered patio, and needs protection from rain and direct sun.
Will the Active Aqua 1 HP heat my water?
No. It is a cooling unit with a set point from 39°F to 90°F. If you want hot and cold from one chiller, Plunge's Pro Chiller Gen 2 offers an optional heater.
Get Your Gen 1 Cold Again
Your Gen 1 tub has plenty of cold plunges left in it. The chiller is the biggest part to replace, but on a Gen 1 it is one of the simplest: two connections, two seals and one plug. ➡ Shop the Active Aqua 1 HP Gen 1 Replacement Chiller to get cold water back the day it arrives, or send us a photo of your chiller and error code first if you want us to confirm the problem.
