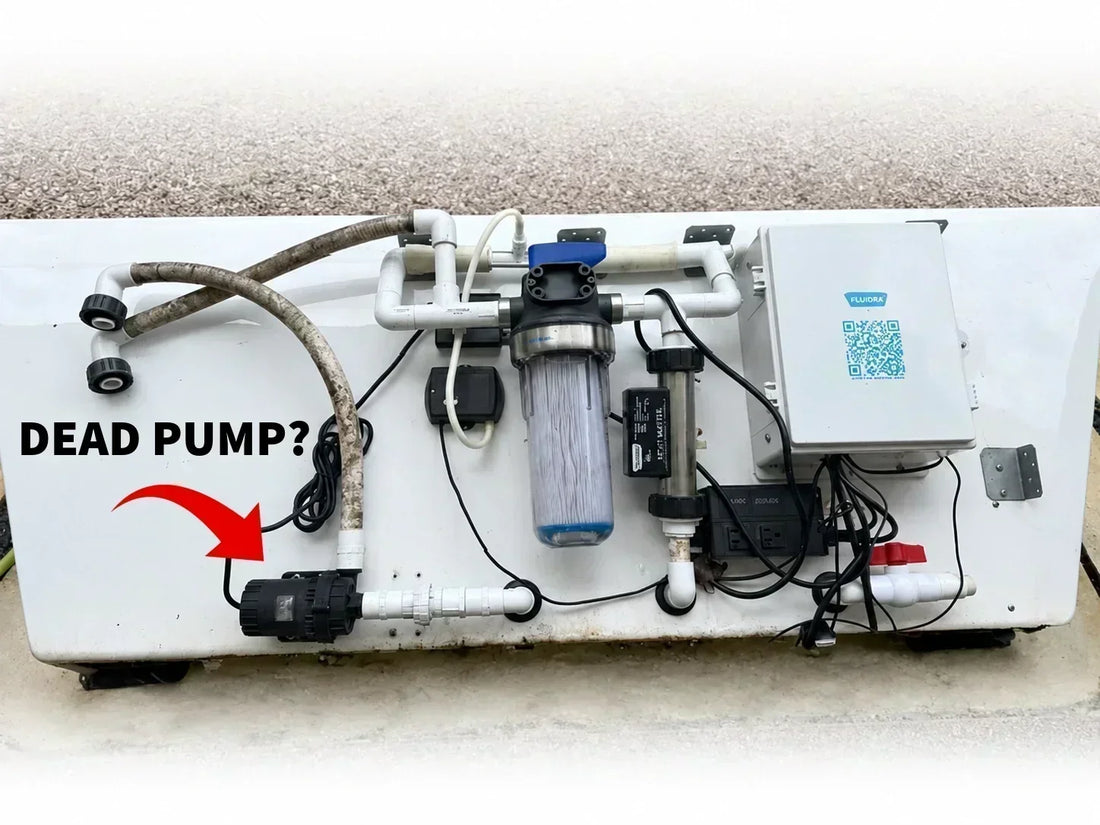

Is Your Plunge Gen 1 Pump Dead? How to Tell — and What to Do About It
Your water was 68 degrees this morning. The chiller display is lit, the tub is full and nothing is moving. If you own a first generation Plunge, this moment was probably coming. The Gen 1 pump system has two known failure points, and the tub shipped with a 1 year limited warranty that has expired for most owners by now. We are an independent cold plunge company and are not affiliated with Plunge, but we hear from Gen 1 owners every week, so this article gives you a straight, verified path back to running water.
Quick answer: A Gen 1 with no water flow almost always comes down to one of two things: the transformer that powers the pump, or the pump itself. A quick check of the transformer's indicator light tells you which one to suspect. From there you can repair the original part, have Plunge retrofit a CJ07 pump, or convert to a standard 110v pump that removes the transformer from the circuit entirely.
Jump to the 15 minute diagnosis | Compare your repair options | See the install steps
Already know your transformer or pump has failed? Skip to the Plunge Gen 1 Pump Repair Kit below.
Why Do Gen 1 Plunge Pumps Fail?
The Gen 1 pump system splits one job across two components, a DC water pump and a separate transformer that converts household power down to the low voltage the pump runs on, and either one can take the system down on its own.
Here is the architecture, per Plunge's own troubleshooting documentation: a transformer mounted inside the electrical box powers the pump, and the pump itself is labeled DC-60, DC-80, or CJ07 depending on when your unit was built and whether it has already been serviced. Plunge's guidance states that the DC-60 transformer is no longer stocked, and that DC-60 and DC-80 owners who need a transformer replacement are steered toward a CJ07 pump upgrade instead. If your unit is old enough to need parts, that scarcity is a real factor in whatever you decide to do next.
Beyond the transformer, the pump itself is a wear part. Small DC pumps running continuously in cold water are doing hard, unglamorous work, and sediment or biofilm buildup on the impeller adds to the load. Either component can fail independently of the other, which is why the diagnosis below treats them as two separate questions rather than one.
How to Diagnose a Gen 1 Plunge Pump in 15 Minutes
You can narrow this down with no special tools. Work through these steps in order, and stop as soon as one of them tells you which part failed.
- Confirm the outlet has power. Plug a phone charger into the outlet feeding your Plunge. If it is dead, reset the GFCI and check your breaker before touching anything else. If you are running an extension cord, it needs to be a 12 gauge heavy duty outdoor cord, since lighter cords cause voltage drop and nuisance failures.
- Open the electrical box on the back of your tub. Open the cover and locate the transformer. It will be a large black rectangular block usually mounted to the right wall of the electrical box.
- Is the light on or off? Light off points to a transformer failure. Light on points to the pump. Never wire the low voltage DC pump directly into a household 110v outlet to test it; it is not built for that voltage.
- Treat the light as a strong signal. A lit LED tells you the transformer is receiving power and turning on. It does not confirm the transformer is still delivering correct voltage once the pump tries to draw current under load. If the light is on and the pump still will not run your pump has most likely failed.
- Rule out a frozen chiller reservoir. If your tub had weak flow for days before dying and you are in freezing weather, the chiller's internal reservoir may have iced over, which mimics a dead pump. Let the unit thaw indoors before condemning any parts.
- Check for restrictions if the pump runs but flow is weak or absent. Confirm every valve in the line is open, pull and inspect the impeller for hair, sediment, or biofilm and check the tub's filter for a clog. A pump that hums but moves no water is often airlocked; confirm water can reach the inlet and that no line is kinked or pinched.
Here is the quick reference version:
| Symptom | Likely Cause | Next Step |
|---|---|---|
| Pump silent, transformer LED off | Transformer not receiving or delivering power | Replace transformer or convert to Gen 1 Plunge Replacement Kit |
| Pump silent, transformer LED on | Pump has likely failed | Replace the pump convert to Gen 1 Plunge Replacement Kit |
| Pump runs, flow weak or absent | Closed valve, clogged filter or impeller, or airlock | Check valves, clean filter, clear impeller, re-prime line |
| Weak flow for days, then nothing, freezing temps | Frozen chiller reservoir | Thaw indoors, then retest |
| GFCI trips repeatedly | An electrical fault somewhere in the circuit | Do not keep resetting and running it. Identify the fault first, with an electrician if you are not comfortable testing it yourself. |
Know which part failed? Our Plunge Gen 1 Pump Replacement Kit below fixes a dead pump and a dead transformer at the same time, since it removes the transformer from the circuit.
Not sure yet? Send us a photo of your electrical box, the pump label and how your plumbing is currently routed, and we will confirm what you are working with before you order anything.
Photo of failed transformer/power supply
Your Repair Options, Compared
Once you have narrowed the failure to the transformer or the pump, you have three paths. Each is a legitimate choice; which one makes sense depends on how you weigh originality, parts availability and how much of the two-part system you want to keep.
Option 1: Replace the failed OEM part
If you can confirm which part failed and Plunge can supply it, replacing that single part keeps your tub original. Availability varies by part and by pump generation, and Plunge's support team is who determines what they can still supply for your unit, so contact them to confirm before assuming a part is in stock.
Option 2: Plunge's CJ07 retrofit
For DC-60 and DC-80 owners, Plunge recommends upgrading to the CJ07 pump for better lifespan and performance, through their own support process. This keeps the transformer-and-pump architecture in place, so the two-part failure mode stays in your system, but you get factory parts.
Option 3: Convert to a 110v AC pump
This is the path we recommend. You replace the DC pump and power supply with a Danner Aqua-Mag 1200, which plugs directly into a 110v GFCI outlet, and the transformer comes out of the system. You trade factory originality for a pump backed by a manufacturer 5 year limited warranty and parts you can buy from almost anywhere. This replacement kit has brought hundreds of dead Gen 1 Plunges back to life!
Shop the Plunge Gen 1 Pump Replacement Kit →
| OEM Part Swap | Official CJ07 Retrofit | Plunge Gen 1 Pump Replacement Kit | |
|---|---|---|---|
| Power supply after repair | Still requires a separate DC transformer | Still requires a separate DC transformer | No separate transformer; Danner 1200 pump runs on standard 110v |
| Parts availability | Depends on stock, confirm with Plunge support | Through Plunge's support process | Off the shelf at pond and aquarium suppliers |
| Warranty on the new part | Set by Plunge at time of service | Set by Plunge at time of service | 5 years, from Danner. Lifetime support from Plunge Crafters |
| Future serviceability | Proprietary parts | Proprietary parts | Standard parts, owner-serviceable impeller |
| Install | Through Plunge, or self-install if they ship the part | Through Plunge's retrofit process | Self-install, basic hand tools |
For an aging Gen 1 that is out of warranty, the conversion is worth considering because it addresses the pump and the transformer in a single install and moves you onto parts you can source yourself going forward. If you want to stay fully original, or your unit is still under warranty, start with Plunge support instead.
Which Gen 1 Setups Does This Kit Support?
The kit is built around the Danner Aqua-Mag 1200, which plumbs into standard 3/4 inch fittings. It is designed to replace a DC-60, DC-80, or CJ07 pump on a Gen 1 running its original 3/4 inch plumbing. Check your pump's label to confirm which one you have.
A few configurations need a closer look before you order: units that have been previously serviced with non-stock plumbing, and units with an added heater relay in the electrical box (some Gen 1 owners have added aftermarket heating, which shares space in the same box). If either applies to you, or if you are simply not sure, send us photos of your electrical box and plumbing runs first and we will confirm fit before you buy.
Why the Complete Kit, Not Just the Pump
The Danner 1200 pump is available on its own, but most Gen 1 owners are better served by the complete kit. Here is the difference: the kit adds the 3/4 inch unions, fitting kit, schedule 40 pipe and flexible spa hose sized to tie into your existing Gen 1 plumbing, plus a step by step install guide and video. Buying the bare pump means sourcing and sizing those fittings yourself, which is where a DIY conversion often stalls out with a mismatched union or the wrong hose diameter.
One detail worth calling out: the kit's design uses a two piece union on each side of the pump. That turns any future pump service into a short disconnect instead of cutting into your plumbing again. If you are sourcing fittings separately instead, our PVC fittings and unions and flexible PVC spa hose are sized for this build.
Installing the Plunge Gen 1 Pump Replacement Kit
This is a basic hand tool job. No electrician is required for the pump itself, since the Danner 1200 plugs into a standard 110v GFCI outlet. You will need to drain the tub before you start.
What's included: the Danner 1200 pump, plumbing kit to make the connections. step by step video and guide.
What you'll need but is not included: PVC primer and cement, towels for the small amount of water still in the lines and basic hand tools.
- Shut off power to the tub and drain the tub. Expect some residual water in the lines even after draining.
- Disconnect and remove the original DC pump and transformer.
- Connect the Danner 1200 in-line using the included unions, elbow, schedule 40 PVC and flexible spa hose to adapt to your existing Gen 1 lines. Wrap every threaded connection with the included thread seal tape before assembly.
- Let the primer and cement set before adding water back to the tub. Follow the cure time printed on your cement's label; rushing this risks a slow leak at a glued joint.
- Position the pump below the tub's water line so the inlet is gravity fed. Danner's mag-drive pumps push water rather than pull it, and a gravity-fed inlet is what makes priming straightforward.
- Plug the pump into a 110v GFCI protected outlet, then run it and check every joint for leaks before you walk away.
Most owners get this done within an hour or two with accounting for cement cure time between steps. If you are sourcing PVC primer and cement locally, any standard hardware store product rated for pressure PVC will work.
➡ Everything above except tools and cement comes in one box in our Plunge Gen 1 Pump Replacement Kit.
If your ozone generator has also stopped working, our guide on diagnosing a Gen 1 ozone generator walks through that side of the system. If you are rebuilding your setup anyway, our guide on building your own DIY cold plunge covers plumbing layout and filtration end to end.
Frequently Asked Questions
Why did my Plunge Gen 1 pump stop working?
The two likely causes are a failed transformer/power supply inside the electrical box or failed DC water pump. Checking the transformer's indicator light is the fastest way to narrow it down: light off points to the transformer, light on points to the pump. We often here the transformer failing after a power outage.
Does Plunge still support the Gen 1?
Yes. Plunge maintains troubleshooting documentation and offers a CJ07 pump retrofit through their support team. Whether a specific replacement part is still in stock depends on your pump generation, so confirm directly with their support team before assuming. We have been told that Plunge charges a $185 diagnostic fee to discuss the case with their support team.
What pump replaces the Plunge Gen 1 pump?
We use the Danner Aqua-Mag 1200 for our conversion kit. It matches the Gen 1's 3/4 inch plumbing, runs on standard 110v power with no transformer and carries a 5 year manufacturer warranty. The Danner Aqua-Mag 1200 has been the gold standard for cold plunge pumps for years.
Can I install this myself?
Most owners can. It's a hand tool job using PVC primer, cement and thread seal tape, done in an hour or two once you allow for cement cure time. No electrician is required for the pump, since the Danner 1200 plugs into a standard GFCI outlet. If you are uncomfortable you can always hire a local plumber to complete the repair for you.
Will replacing the pump fix water that is not cooling?
Only if the flow problem was the cause. No flow means the chiller cannot do its job, so a dead pump can show up as warm water. If your pump runs and flow is strong but the water still is not cold, the chiller itself is the more likely issue. Our guide on how a cold plunge chiller works walks through that side of the system.
Do I need the original transformer with a Danner 1200?
No. The Danner 1200 runs on 110v AC household power directly, and the original transformer comes out of the system entirely.
What if I'm not sure which parts I have?
Send us photos of your pump label, electrical box and plumbing layout before you order. We'll confirm compatibility so you're not guessing.
Keep Your Gen 1 Running
Your Gen 1 tub has plenty of life left in it. The pump and transformer are the parts most likely to give out first, and converting to a Danner 1200 addresses both in a single install. ➡ Shop the Plunge Gen 1 Pump Replacement Kit to get your tub circulating again, or send us photos first if you want to confirm fit.
